CUTOUT RELAY
The cutout relay (or circuit breaker) is simply a magnetic switch closes the circuit between the generator and the battery when the generator is producing current. Also, it opens the circuit so that the battery cannot discharge back through the generator when the generator stops or slows down. The D.C. generator is connected to the battery through a cutout relay and an ammeter. |

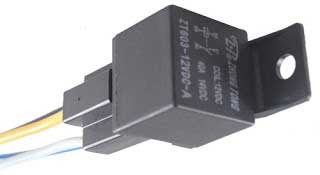

| Cutout Relay |
Construction
The cutout relay consists of two windings shunt winding and series winding, assembled around a core and a flat steel armature mounted on a hinge above the core. The series winding consists of a few turns of heavy wire and the shunt winding consists of a few tums of fine wire. The armature is connected to the battery through an ammeter by contact points. |
| Cutout Relay |
Operation Of Cutout Relay
When the generator is not operating, spring on the armature holds the contact points apart, this keeps the circuit between the generator and the battery open. When the generator is operating, the core winding creates a magnetic field which attracts the armature, contact points are closed and generator is connected to the battery Current flows from the generator to the battery and passes through the series winding. But when the generator stops, the current begins to flow from battery to generator. This reverse direction of current flow in the series winding causes the magnetic field to reverse. Thus, the magnetic fields of the winding no longer aid and is so weakened that it cannot hold the armature down. The spring tension pulls the armature up, separating the contact point. This opens the circuit between the generator and the battery.Watch the Practical video below of explaining Function of cutout relay.
 |
| Cutout Relay |
